Gateways

Humax offers an array of CPE solutions for the gigabit internet network over any medium, including optical fiber, copper, LTE, and coaxial.

Network CPE OVERVIEW

Ultra-Fast Content Delivery

Giga Solutions on Any Medium

  • Humax has a variety of CPE Solutions such as Optical Fiber, Copper, LTE, and Coaxial. We can conduct giga services via accessing networks.


Ultra-Fast Contents Delivery

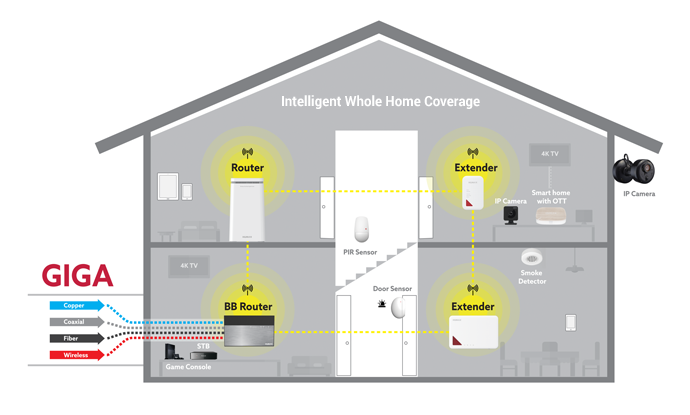

  • With Extender, Femto, and PLC for whole home coverage, as well as IoT solutions for controlling and monitoring the home devices, end-customers can enjoy 4K TV, play games, and download and upload the content with virtually no lag time.

Enhanced QoS & DPI

  • Up and Downstream QoS
  • Centralized, dedicated QoS engine providing full control over all data flows
  • Accel, Programmable Layer-7 DPI
  • High grade QoS
  • Precise bandwidth assigned to Traffic & Device
  • Paid service categories with higher priority than free service
  • Bandwidth priority allocated to each screen size and device

* The gateway can handle multiple bottlenecks at the same time.

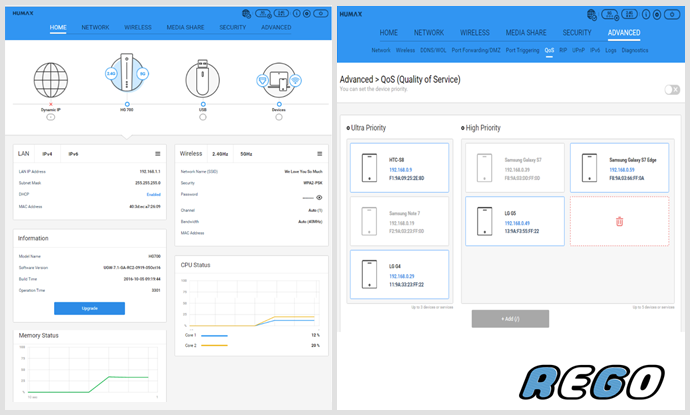

Web Accessibility

  • Removes barriers preventing access to websites by people with disabilities
  • Equal access to information and functionality for all users

Flexibility for Any Device

  • Optimized web GUI environment for all users without the need for application installation

DOCSIS Solutions

The HUMAX DOCSIS 3.0 Wireless Residential Voice Gateway delivers the ultimate throughput performance for home and business networking and complies with DOCSIS1.x/2.0/3.0 standards. It combines a cable modem, two-line voice adapter, router, and 802.11ac wireless access points in a single device, offering a cost-effective voice and networking solution.

D3.0 8x4

network_product_hg100r-le_l4

D3.0 16x4

network_product_HGB10R-02

D3.0 24x8

network_products_HG200RE

D3.0 32x8

network_products_HG32R-V

DOCSIS 3.1

network_products_HG3310
network_product_hg100r-le_l4

HG100R-L2/L4

Wireless Voice Gateway

  • 2x2 11n DBDS
  • RJ45x4 / RJ11x2
  • USB Optional
  • Mass Production
network_product_hg100re-02

HG100RE-02

Wireless Voice Gateway

  • 2x2 11n DBDC (External)
  • RJ45x4 / RJ11x2
  • USB Optional
  • Mass Production
network_products_D3GNV5(M)

D3GNV5(M)

Wireless Voice Gateway

  • 3x3 11n DBDC
  • RJ45x4 / RJ11x2 / USBx1
  • MoCA 1.1 Optional
  • BBU Optional
  • Mass Production
network_products_HG100R-02JG

HG100R-02JG

Wireless Data Gateway

  • 3x3 11ac DBDC
  • RJ45x4
  • USB Optional
  • Mass Production
network_products_HG100RE-AK

HG100RE-AK

Wireless Data Gateway

  • 2x2 11n DBDS
  • RJ45x4 / USB2.0x1
  • Mass Production
network_products_D3G0804W

D3G0804W

Wireless Data Gateway

  • 3x3 11n DBDC
  • RJ45x4 / USBx1
  • Mass Production
network_products_HGA12R-02

HGA12R-02

Wireless Voice Gateway

  • 3x3 11ac DBDC
  • RJ45x4 / RJ11x2
  • USB Optional
  • Mass Production
network_product_HGB10R-02

HGB10R-02

Wireless Voice Gateway

  • 3x3 11ac DBDC
  • RJ45x4 / RJ11x2
  • USB Optional
  • Mass Production
network_products_D3G1604W

D3G1604W

Wireless Data Gateway

  • 3x3 11n DBDC
  • RJ45x4 / USBx2
  • Mass Production
network_products_D3CM1604V

D3CM1604V

eMTA

  • eMTA (No Wireless)
  • RJ45x1 / RJ11x2
  • BBU Optional
  • Mass Production
network_products_HGB22R-02

HGB22R-02

Wireless Voice Gateway

  • 3x3 11ac DBDC
  • RJ45x4 /RJ11x2 /USBx2

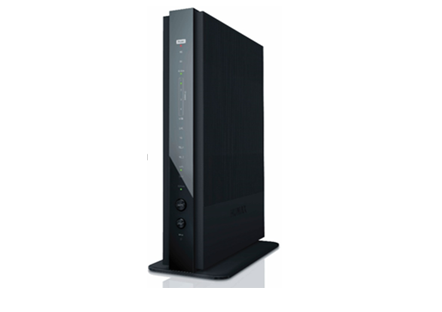

network_products_HG220R

HG220R

Wireless Voice Gateway

  • 3x3 11ac DBDC
  • RJ45x4 /RJ11x2 / USBx2
  • DECT / MoCA / BBU (Optional)
network_products_HGM22R

HGM22R

Cable Modem

  • Pure Cable Modem
  • RJ45x1
  • RDK-B
  • Sample Ready: Q4’16
network_products_HGA22R-02

HGA22R-02

Wireless Voice Gateway

  • 3x3 11ac DBDC
  • RJ45x4 /RJ11x2 /USBx2
network_products_HG3310R

HG3310R

Wireless Voice Gateway

  • DOCSIS 3.1
  • 11n(3x3);11ac(4x4) DBDC
  • RJ45x4 / RJ11x2 / USBx1
  • MoCA 2.0 (Optional)

xDSL Solutions

The HUMAX ADSL/VDSL Voice Gateway offers fast connectivity and performance for your home, perfect for multi-users on the copper medium. With integrated 802.11ac Access Point in xDSL solutions, it offers quick and easy access via wired network, wireless network, and broadband connections in a single device.

xDSL

network_products_HV-100-02

G.fast

network_products_HV242-03V
network_products_HV100-01

HV100-01

VDSL2 Gateway

  • ADSL2+/VDSL2
  • IEEE 802.11n single band
  • External antenna Type
  • Ethernet x 4 (RJ45)
  • VoIP x 2
  • USB2.0 Master x 1 (Optional)
network_products_HV100-02

HV100-02

VDSL2 Gateway

  • ADSL2+/VDSL2
  • IEEE 802.11n/ac dual band(2x2)
  • External antenna Type
  • Ethernet x 4 (RJ45)
  • VoIP x 2
  • USB2.0 Master x 1 (Optional)
network_products_HG700

HG700

VDSL2 Gateway

  • ADSL2+/VDSL2
  • 802.11n/ac with DBDC (2.4GHz 3x3 and 5GHz 4x4)
  • 1 GE WAN
  • Ethernet x 4 (RJ45)
  • VoIP x 2
  • USB 3.0 x 1
network_products_HV242-03V

HV242-03V

G.Fast Gateway

  • ADSL2+/VDSL2(35b)/G.Fast
  • 802.11n/ac with DBDC (2.4GHz 2x2 and 5GHz 4x4)
  • 1 GE WAN
  • Ethernet x 4
  • VoIP x 2 (Phone & Fax)
  • USB 3.0 x 1

xPON Solutions

The HUMAX PON Gateway offers fast connectivity for the gigabit internet service. It’s an incredibly robust all-in-one device allowing users to access high-speed internet connection via its GPON port and share it wirelessly at powerful wireless speeds.

GPON

network_products_HP210-02V

10G PON

network_products_HP420
network_products_HP112

HP112

GPON SFU

  • 2.488Gbps DS & 1.244Gbps US
  • Splitting ratio: 1:64
  • Ethernet x 1 (RJ45)
  • Dynamic Bandwidth Allocation(DBA)
  • Remote Management Via OMCI
network_products_HP210-02V

HP210-02V

GPON Gateway

  • 2.488Gbps DS & 1.244Gbps US
  • 802.11n/ac with DBDC
    (2.4GHz 2x2 and 5GHz 3x3)▪
  • 1 GE WAN
  • Ethernet x 4 (RJ45)
  • VoIP x 1
  • USB3.0 Master x 1
network_products_HP323

HP323

10G EPON ONU

  • 10G EPON / EPON Backward compatible
  • Link Aggregation Control Protocol
  • Multiple LLID per ONU
  • Ethernet x 4 (RJ45)
network_products_HP420

HP420

10G EPON Gateway

  • 802.11n/ac with DBDC
    (2.4GHz 4x4 and 5GHz 4x4 MU-MIMO)
  • 10 GE WAN
  • Ethernet x 4 (RJ45)
  • VoIP x 2
  • USB3.0 Master x 1

Wireless Solutions

HUMAX is a leader in LTE small cells solutions, proactively working with technology partners to provide the most effective performance/price solutions for the carriers committed to making a difference in their respective markets.

Indoor Femtocell

network_products_Residential

Outdoor Femtocell

network_products_Outdoor
network_products_Residential

HF130-16

FDD-LTE Femtocell

  • 50mW/path 2x2
  • BW 5/10/15/20 MHz
  • Band 3/7
  • Capacity 16UE
  • Mass production
network_products_HF233-16

HF233-16

FDD-LTE Femtocell

  • 100mW/path 2x2
  • BW 5/10/15/20 MHz
  • Band 3/7
  • Capacity 32UE
  • Mass production

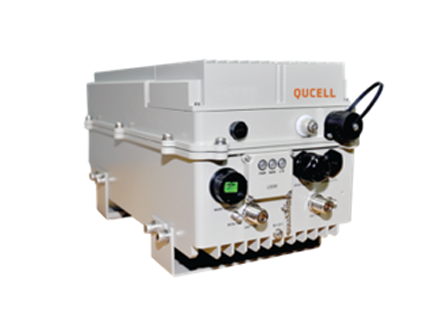

network_products_Outdoor

HF333-05

FDD-LTE Femtocell

  • 10W/path 2x2
  • BW 5/10/15/20 MHz
  • Band 3/7
  • Capacity 32UE
  • Mass production
