EV Charging Solution

Humax is Charging Ahead

Humax offers a fully-integrated EV charging solution comprising of charger design, sales, and operation.

Having recently acquired a company with power conversion technology and charging business expertise, we are charging ahead with developing Humax-branded EV chargers. By integrating EV charging and our parking operations, we have been installing fast and slow chargers in major commercial districts throughout Korea.

We are taking the cutting-edge technology, quality standard, and production capabilities garnered from our extensive broadband and network gateway businesses and applying them to the EV charging business model. Through our global network, we are expanding the EV charging business as well as offering a complete solutions package combining an array of mobility services. Our ongoing aim, after all, is to maximize value for the user with the highest quality of service.

Main Business

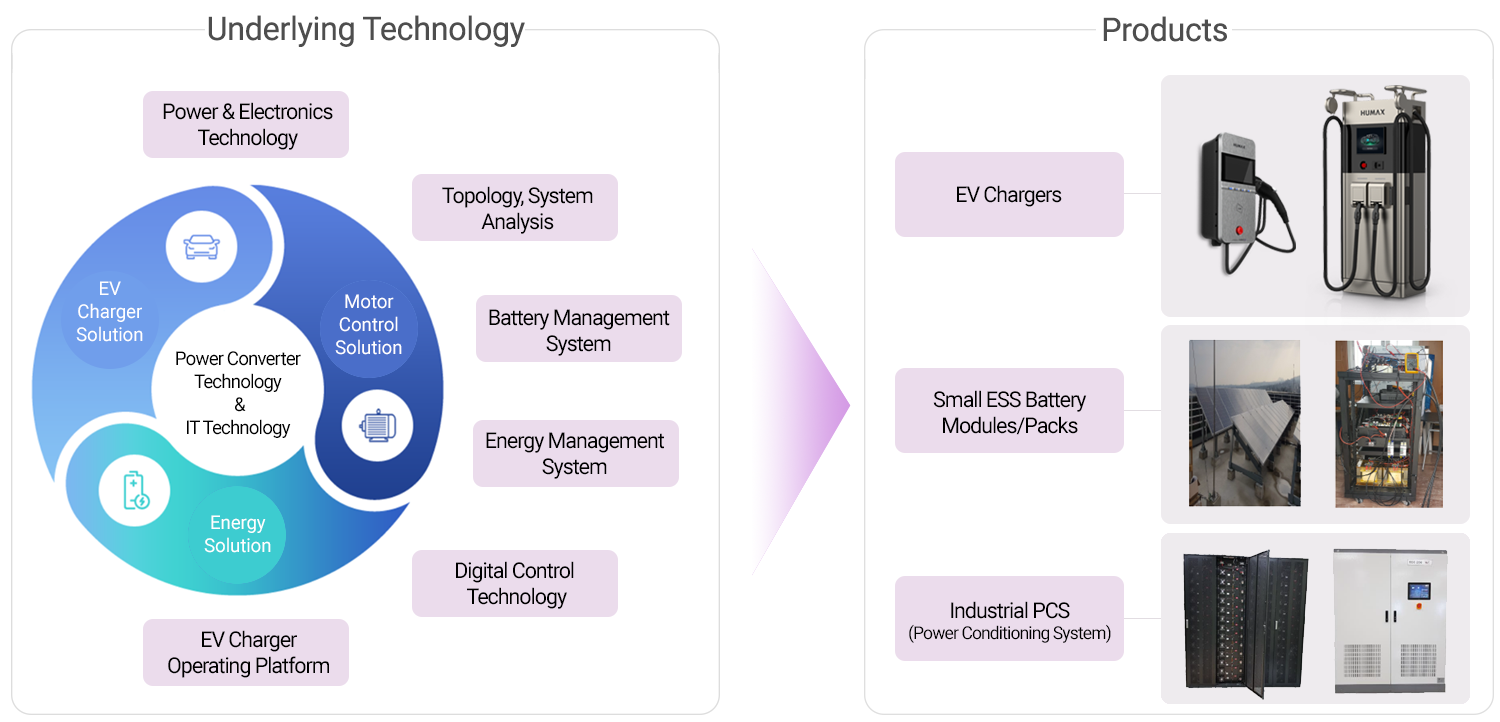

Our Fully-Integrated EV Charging Solution Value Chain

Integrated EV Charging Solution

EV Charger R&D, Production

  • 7kW-350kW Charger Development Expertise
  • Planning, Design, and Production Technology
  • Billing Type Wall Socket (Outlet): Slow/Fast/Ultra-Fast Chargers

EV Charger Sales

  • Expansion of Customer Base to Building Contractors & CPOs
  • Public and Private Chargers
  • B2G, B2B, B2C Businesses

EV Charger Operations

  • Integrated Mobility Service Platform
  • Mobility-Related Add-On Services
  • Smart Grid and Energy Management System

Our Products

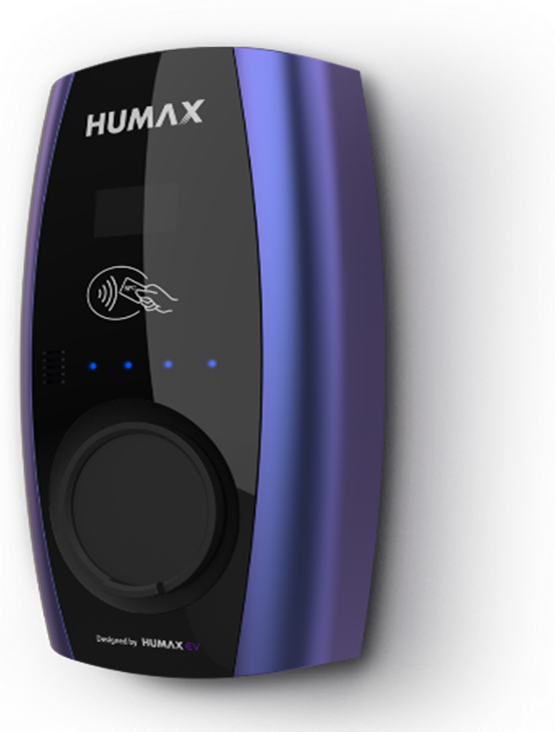

Slower Charger (HEV-1011) / 11kW (Wall or Stand Type)

Main Features

– Remote control and monitoring
– RFID

Specifications

Features

Slow Charger HEV-1011

Electrical

Input

380-415 V three-phase – 50/60 Hz

Output

Three phase up to 11 kw / 16 A

Charging Type

Attached cable (T2 connector) or T2 Socket (with or without shutter) IEC 62196

Power Metering

N/A

Mechanical

Dimension

300x300x200(mm): Changeable according to the development stage

Weight

3.5KG: Changeable according to the development stage

Cable Length

5M

Material

PC

Interface

Display

DOT LCD

Environmental

Operating Temp.

-35 ~ +50 °C

Storage Temp.

-35 ~ +50 °C

Humidity

<95%, non-condensing

Ingress Protection

IP54

Impact Protection

IK10

Connectivity

Interface

Ethernet, Optional: BT 5.0, 4G/LTE, WiFi

Protocol

Optional: OCPP 1.6

Authentication

RFID, Mobile App

Installation

Application

Yes

*Launching in Europe: Q3 2022

Slower Charger (HEV-1022) / 22kW (Wall or Stand Type)

Main Features

– Remote control and monitoring
– Remote Power Load Balancing
– RFID & Wireless connectivity

Specifications

Features

Slow Charger HEV-1022

Electrical

Input

380-415 V three-phase – 50/60 Hz

Output

Three phase up to 22 kw / 32 A
Load Balancing by server

Charging Type

Attached cable (T2 connector) or T2 Socket (with or without shutter) IEC 62196

Power Metering

Germany: Smart Meter
EU except Germany: MID meter

Mechanical

Dimension

300x300x200(mm): Changeable according to the development stage

Weight

3.5KG: Changeable according to the development stage

Cable Length

5M

Material

PC

Interface

Display

DOT LCD

Environmental

Operating Temp.

-35 ~ +50 °C

Storage Temp.

-35 ~ +50 °C

Humidity

<95%, non-condensing

Ingress Protection

IP54

Impact Protection

IK10

Connectivity

Interface

Ethernet, BT 5.0, 4G/LTE, WiFi

Protocol

OCPP 1.6/ Upgradable to OCPP 2.0

Authentication

RFID, Mobile App

Installation

Application

Yes

*Launching in Europe: Q3 2022

Fast Charger (HEV-Q1100) / 100kW (Dual)

Main Features

– Simultaneous Dual Charging
– Remote Control and Monitoring
– Protection from Short Circuiting and Over Temperature

Specifications

Features

Fast Charger (HEV-Q1100)

Output Power

100kW/h (Dual Charging Mode: 50kW Each)

Input Voltage

3 Phase/4 Wire, AC 380V, 60Hz

Output Voltage

DC 200~500V, 200A, 100kW (Single Mode)
DC 200~500V, 110A, 50kW (Dual Mode)

Charging Type

IEC 62196-3 (CCS combo 1) 2 Way

Cable (Length)

Auto Cable Hold / Reclamation Function (5.5m)

Display

12.1“ Touch-LCD

Payment Method

Credit Card, RFID Card

Protection Grade

IP44

Operating Temperature & Humidity

-25 ~ 40℃, 95%

Product Size

Main Body: 670(w) x 530(d) x 1700(h)mm
Incl. Cable Holder: 820(w) x 700(d) x 1800(h)mm

Fast Charger (HEV-Q1050) / 50kW (2-Way Mode)

Main Features

– DC Combo + DC CHAdeMO
– Remote Control and Monitoring
– Protection from Short Circuiting and Over Temperature

Specifications

Features

Fast Charger (HEV-Q1050D)

Output Power

50kW/h (2-way Mode)

Input Voltage

3 Phase/4 Wire, AC 380V, 60Hz

Output Voltage

DC 200~500V, 120A, 50kW

Charging Type

IEC 62196-3 (CCS combo 1, CHAdeMO)

Cable (Length)

Auto cable Hold / Reclamation Function (5.5m)

Display

12.1“ Touch-LCD

Payment Method

Credit Card, RFID Card

Protection Grade

IP44

Operating Temperature & Humidity

-25 ~ 40℃, 95%

Product Size

Main Body: 670(w) x 410(d) x 1700(h)mm

Incl. Cable Holder: 820(w) x 580(d) x 1800(h)mm

Slow Charger (HEV-S1007) / 7kW (Wall or Stand Type)

Main Features

– 8-inch Display, Simple Use with 4 Buttons
– Remote Control and Monitoring
– Remote Power Load Balancing (1-7 kW)

Specifications

Features

Slow Charger HEV S1007

Output Power

7kW/h

Input Voltage

Single Phase AC 220V, 32A, 60Hz

Output Voltage

Single Phase AC 220V, 32A, 60Hz / 7kWh

Charging Type

C Type (SAE J1772), AC Phase 5-pin

Cable (Length)

5m

Display

8“ LCD

Payment Method

RFID Card

Protection Grade

IP44

Operating Temperature & Humidity

-25 ~ 40℃, 95%

Product Size

220mm(w) x 157mm(d) x 465mm(h)

Contact us for EV charging solution
